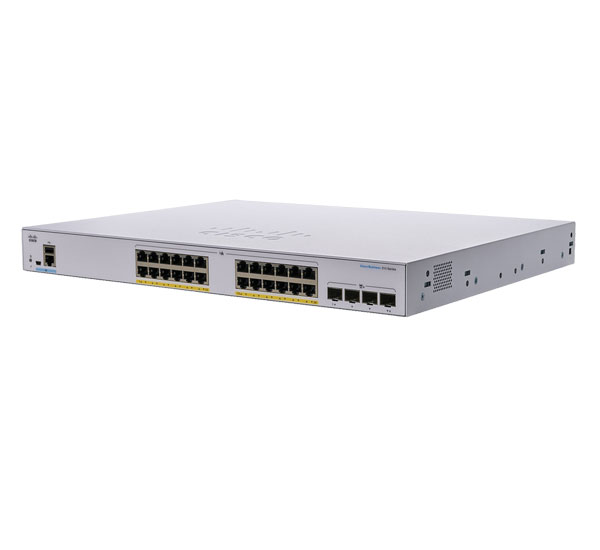

Cisco Catalyst C1000-24PP-4G-L
| Description | Performance |
| Hardware | |
| Interface | 8x PoE+ and 16x 10/100/1000 Ethernet ports and a 195W PoE budget, 4x 1G SFP uplinks |
| Console ports |
|
| Indicator LEDs |
|
| Dimensions (WxDxH in inches) | 17.5 x 11.76 x 1.73 |
| Weight | 3.53 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate (64‑byte L3 packets) |
41.67 Mpps |
| Unicast MAC addresses | 15,360 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 static routes | 16 |
| IPv6 static routes | 16 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.21A to 0.26A |
| Power rating (maximum consumption) | 0.24 kVA |
| PoE Suports | Yes |
| Total PoE Suports | 195W |
| PoE Power | 30W for any 6 or 15W for ports 1 to 8 |
| Safety and compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: Emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | TBD |
