HUAWEI AP263 (11AX INDOOR,2+2 DUAL BANDS,SMART ANTENNA,USB,BLE)

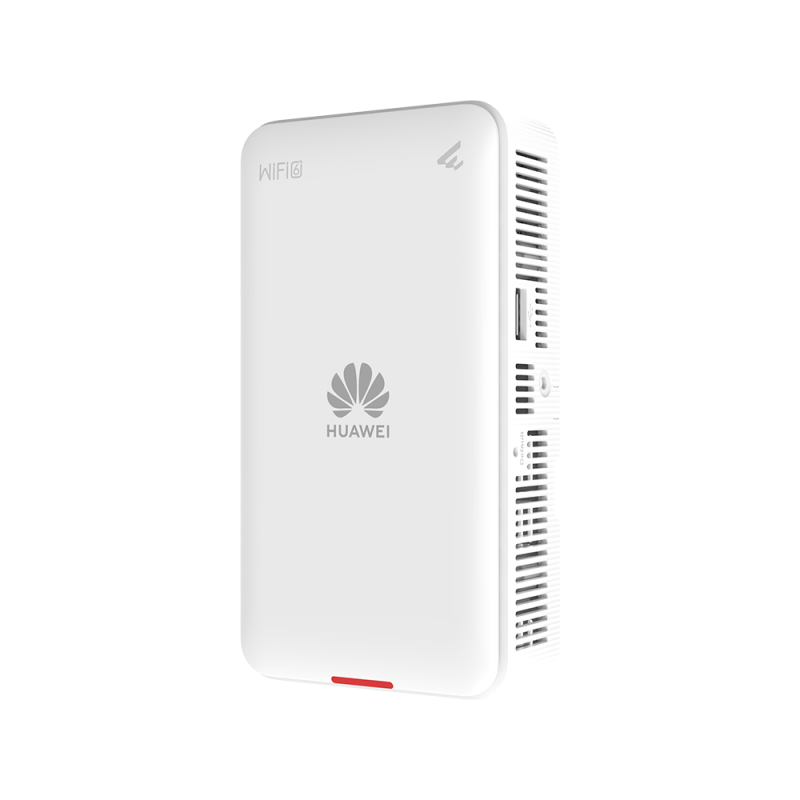

Huawei AP263 Access Point

AP263 (11ax indoor,2+2 dual bands,smart antenna,USB,BLE)

Huawei AP263 is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, achieving a device rate of up to 2.975 Gbps. This AP features high bandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers’ investment. These strengths make the AP263 ideal for indoor coverage scenarios of small and medium-sized enterprise offices, hospitals, and higher education.

– Dual-radio mode: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO), achieving rates of up to 575 Mbps and 2.4 Gbps, respectively, and 2.975 Gbps for the device.

– 1 x GE electrical port.

– Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.

– Supports the Fat, Fit, leader, and cloud working modes.

Features:

– Wi-Fi 6 (802.11ax) standard

– MU-MIMO

– High-speed access

– High Density Boost technology

– Wired and wireless dual security guarantee

– Automatic radio calibration

– Leader AP

– Cloud-based Management

Specifications:

Technical Specification:

ITEM	SPECIFICATION
Installation Type	Desk / Wall / Ceiling / Junction Box
Dimensions without packaging (H x W x D) [mm(in.)]	160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)]	0.320 kg (0.705 lb)
Weight with packaging [kg(lb)]	0.542 kg (1.195 lb)
Storage	NAND Flash 256 MB
Console port	BLE console
Maximum power consumption [W]	12 W
Maximum heat dissipation [BTU/hour]	41 BTU/hour
Power supply mode	DC adapter / PoE
Rated input voltage [V]	12 V
Input voltage range [V]	12±10% / PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa – 106kPa ETSI 300 019-2-3
Ground	floating ground
USB	USB 2.0 (supporting 5 W power supply)
BLE	BLE5.0
Radio number	2
Operating frequency band	2.4GHz / 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 / Radio 1 (5 GHz): 2×2
Wi-Fi standard	2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 2 dBi/chain (peak value), 1 dBi (combined gain) 5G: 3 dBi/chain (peak value), 1 dBi (combined gain) BLE: 4 dBi
Maximum transmit power	2.4G: 20 dBm/chain, 23 dBm (combined power) 5G: 20 dBm/chain, 23 dBm (combined power) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	69.7 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3at power supply description	No function is limited.
802.3af power supply description	The USB function is unavailable.
DC power supply description	No function is limited.

WLAN features:

– Compliance with IEEE 802.11ax and compatibility with IEEE 802.11a/b/g/n/ac/ac Wave 2

– Maximum ratio combining (MRC)

– Space time block code (STBC)

– Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)

– Beamforming

– Multi-user multiple-input multiple-output (MU-MIMO)

– Orthogonal frequency division multiple access (OFDMA)

– Compliance with 1024-quadrature amplitude modulation (QAM) and compatibility with 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature phase shift keying (QPSK), and binary phase shift keying (BPSK)

– Target wake time (TWT)

– Low-density parity-check (LDPC)

– Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

– 802.11 dynamic frequency selection (DFS)

– Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz and 160 MHz modes

– Priority mapping and scheduling that are compliant with Wi-Fi multimedia (WMM) to implement priority-based data processing and forwarding

– Automatic and manual rate adjustment (the rate is adjusted automatically by default)

– WLAN channel management and channel rate adjustment

– Automatic channel scanning and interference avoidance

– Service set identifier (SSID) hiding

– Signal sustain technology (SST)

– Unscheduled automatic power save delivery (U-APSD)

– Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode

– Extended Service Set (ESS) in Fit AP mode

– Advanced cellular coexistence (ACC), minimizing the impact of interference from cellular networks

– Multi-user call admission control (CAC)

– 802.11k and 802.11v smart roaming

– 802.11r fast roaming (≤ 50 ms)

What’s In The Box:

1 x Huawei AP263 Access Point

1 x User Guide
