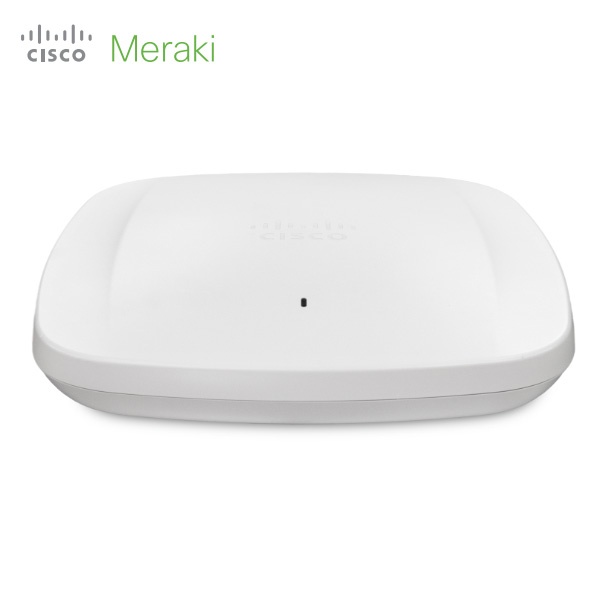

Meraki CW9166I-MR Cloud Managed 802.11ax Compatible AP

• Four 4:4 MU-MIMO 802.11ax, up to 7.8 Gbps tri-radio aggregate frame rate
• 2.4 GHz, 5 GHz, and 6 Ghz radios; dual-band scanning radio; Bluetooth® Low Energy/IoT radio
• Full-time Wi-Fi location tracking
• PoE: 802.3at and .3bt compliant
• USB 2.0 connector

Meraki CW9166I-MR data sheet

Meraki CW9166I-MR specifications:

1. Radios

2.4 GHz 802.11b/g/n/ax client access radio

5 GHz 802.11a/n/ac/ax client access radio

6 GHz 802.11ax client access radio

2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio

2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all five radios

Supported frequency bands (country-specific restrictions apply):

Dual 5 GHz mode:

2.412-2.484 GHz ISM

(5 GHz radio1) 5.150-5.250 GHz (UNII-1)

(5 GHz radio1) 5.250-5.350 GHZ (UNII-2)

(5 GHz radio2)5.470-5.600, 5.660-5.725 GHz (UNII-2e)

(5 GHz radio2) 5.725 -5.825 GHz (UNII-3)

Tri-band mode:

2.412-2.484 GHz ISM

5.150-5.250 GHz (UNII-1)

5.250-5.350 GHZ (UNII-2)

5.470-5.600, 5.660-5.725 GHz (UNII-2e)

5.725 -5.825 GHz (UNII-3)

5.925 to 6.425 GHz (UNII-5)

6.425 to 6.525 GHz (UNII-6)

6.525 to 6.875 GHz (UNII-7)

6.875 to 7.125 GHz (UNII-8)

1. Antenna

Integrated omni-directional antennas

2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth

5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth

5 GHz: (XOR) Peak gain 5 dBi, internal antenna, omnidirectional in azimuth

6 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

802.11 ax compatible, 802.11ac Wave 2 and 802.11n Capabilities

UL/DL-OFDMA

Target Wait Time (TWT)

BSS coloring*

SU-MIMO and DL MU-MIMO support

Maximal ratio combining (MRC)

802.11ax beamforming

20 and 40 MHz channels (802.11n)

20, 40, 80 MHz channels (802.11ac Wave 2)

20, 40, 80 and 160MHz channels (802.11ax)

Up to 1024-QAM on 2.4 GHz, 5 GHz and 6 GHz bands

Packet aggregation – A-MPDU (transmit and receive), A-MSDU (transmit and receive)

1. Power

Power over Ethernet: 42.5 – 57 V (PoE+ and UPoE compliant)

DC Power Adapter (54V)

Power consumption: 30W to 50W (UPoE)

Minimum power requirement: 30W (PoE+, USB is disabled)

Power over Ethernet injector and DC adapter sold separately

1. Interfaces

1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)

1x DC power connector (5.5 mm x 2.5 mm, center positive)

USB 2.0 at 4.5W

Console – Only available in DNA Persona

Environmental Interfaces – Only available in DNA Persona

1. Mounting

All Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included)

Desktop, ceiling, and wall mount capable

Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes

1. Physical security

Two security screw options (included) (13.5 mm long and 2.5 mm diameter and 5 mm head)

Kensington lock

1. Environment

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m)

Operating temperature: 32° to 122°F (0° to 50°C)

Operating humidity: 10% to 90% (non-condensing)

Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m)

• – Reliability

Mean Time Between Failure (MTBF): 998,440 hrs at +25°C operating temperature

1. Physical Dimensions

9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)

Weight: 3.54 lb. (1.60 kg)

1. Security

Integrated Layer 7 firewall with mobile device policy management

Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal

Flexible guest access with device isolation

VLAN tagging (802.1q) and tunneling with IPsec VPN

PCI compliance reporting

WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal*, WPA3 – Enterprise*, WPA3 – Enhanced Open (OWE)*

EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM

TKIP and AES encryption

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Cisco ISE integration for Guest access and BYOD Posturing

1. Quality of Service

Advanced Power Save (U-APSD)

WMM Access Categories with DSCP and 802.1p support

Layer 7 application traffic identification and shaping

1. Mobility

PMK, OKC, & 802.11r for fast Layer 2 roaming

Distributed or centralized layer 3 roaming

1. Analytics

Embedded location analytics reporting and device tracking

Global L7 traffic analytics reporting per network, per device, & per application

1. LED Indicators

One power/booting/firmware upgrade status

1. Regulatory

RoHS

For additional country-specific regulatory information, please contact Meraki sales

1. Warranty

Lifetime hardware warranty with advanced replacement included

1. Ordering Information

CW9166I-MR: Meraki CW9166I Cloud Managed 802.11ax Compatible AP

MA-PWR-50WAC: Meraki AC Adapter for MR Series (power cable separate SKU)

MA-INJ-6: Meraki Multigigabit 802.3bt Power over Ethernet Injector (power cable separate SKU)

Cisco AIR-PWRINJ-6 802.3at

Cisco AIR-PWRINJ-7 802.3bt

Power cord – MA-PWR-CORD-XX (XX Country Code) should be ordered separately for the AC adapter and Ethernet injector

Mounting bracket: AIR-AP-BRACKET-1 and AIR-AP-BRACKET-2(bundled)

Meraki access point license required

PoE power consumption	2.4 GHz radio	5 GHz radio	6 GHz radio	Link speed	USB	Link Layer Discovery Protocol (LLDP)
802.3bt (UPOE)	4×4	4×4	4×4	5Gbps	Y (4.5W)	30.5 W
802.3at (PoE+)	4×4	4×4	4×4	5Gbps	N	25  W
802.3af (PoE)	–	–	–	1Gbps	N	14 W
DC Power	4×4	4×4	4×4	5Gbps	Y
